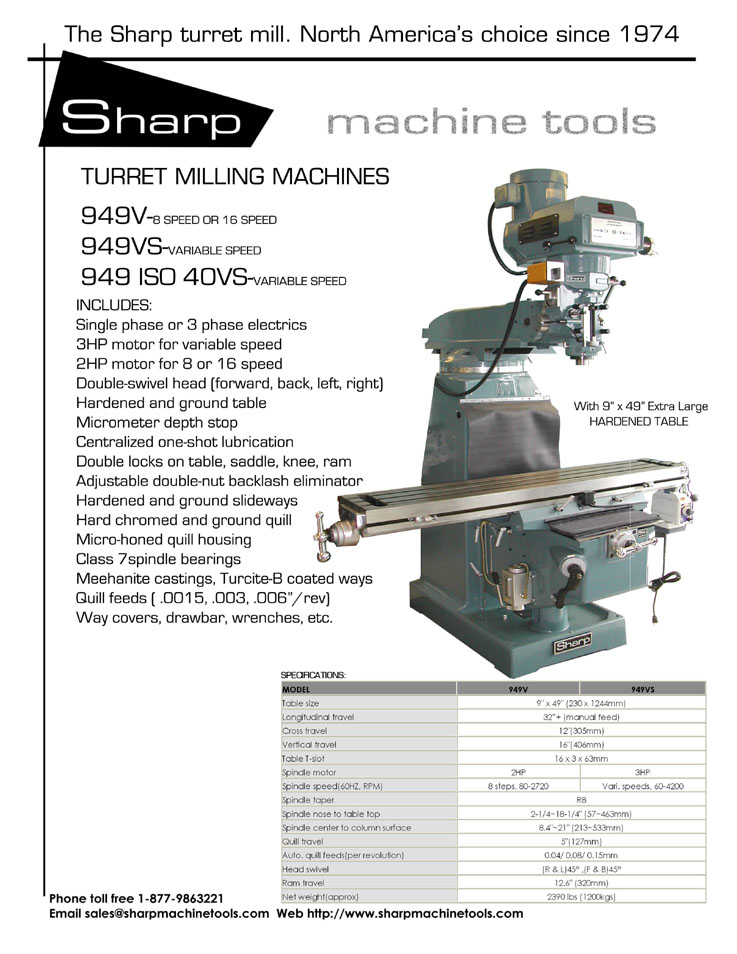

Sharp  Vertical Milling Machine

USE ANYWHERE!
Available in 220V Single Phase Power

Models

Model 9" x 35" - 2 HP 8-Speed Head
·Weight 1,800 lbs.
·9" x 35" Table

Model 949V - 2 HP 8-Speed Head
·9" x 49" Extra Large Hardened Table
·Meehanite® Cast Iron Construction
·Weight 2,400 lbs.
·Hardened & Ground Slideways 12" Cross Travel

Model 949 VS - 3 HP Variable Speed Head
·9" x 49" Extra Large Hardened Table
·Meehanite® Cast Iron Construction
·Weight 2,400 lbs.
·Hardened & Ground Slideways 12" Cross Travel

Extras

·Horizontal Milling Capability (Available)
·Rapid Transverse (Available)

Common Features (within the above mentioned models)

·Large Hardened Table
·Hard Chromed & Ground Quill
·Micro Honed Quill Housing
·Class 7 Preloaded Angular Contact Spindle Bearings
·Adjustable Double Nut Backlash Eliminator
·Micrometer Depth Stop
·Double Locks on Table Saddle and Ram
·Centralized One-Shot Lube System
·Double Tilt Head (Forward, Back, Right, Left)
·Heavy Duty R8 Spindle
·Quill Feeds .0015", .003", .006"
·Quill Travel 5"

Specifications

Longitudinal travel              21" (520mm)
Cross travel                     12" (300mm)
Vertical travel                  16" (400mm)
Table T-slots                    16 x 3 x 63mm
Spindle taper                    R8
Spindle nose to table top        40  ~ 435mm
Spindle center to column surface 196 ~ 401mm
