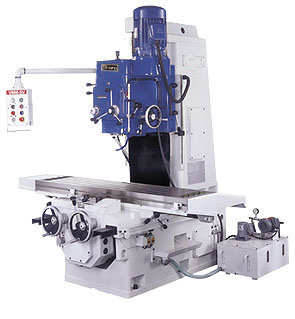

SHARP |
CS-VBM-3V |
|
CAPACITY |
|
Table
travel (Longitudinal) |
1000mm (39-3/8") |
|
Table
travel (Cross) |
380mm
(14-15/16") |
|
spindle head travel (Vertical) |
500mm
(19-11/16") |
|
spindle nose to table top |
100~600mm
(3-15/16"~23-5/8") |
|
spindle center to column |
380mm
(14-15/16") |
|
TABLE |
|
Table
working area |
1700mm x 380mm
(67" x 14-15/16") |
|
T
slot (wide x no.x pitch) |
18mm
x 5 x 70mm
(0.709" x 5 x 2-3/4") |
|
Table
top to floor |
800mm
(31-1/2") |
|
SPINDLE HEAD |
|
Spindle nose |
ISO
R297 No.50 |
|
Spindle speed |
45~1500rpm (60Hz) |
|
No.
of spindle speed |
12
steps |
|
Feeds
(Vertical spindle) |
0.05~0.2mm/rev (0.002~0.008ipr) |
|
FEED |
|
Rapid
traverse (Longitudinal & cross) |
2880mm/min (113-3/8ipm) (60Hz) |
|
Feed
rates (Longitudinal & cross) |
28~875mm/min (1-1/8~34-7/16ipm) (60Hz) |
|
Change of feed |
12
steps |
|
MOTORS |
|
Spindle |
5.5kW
(10HP) 4P |
|
Feed
|
0.75kW (1HP) - 4P |
|
Lubrication |
3W-
4P |
|
Cutting fluid |
0.15kW (1/6HP) - 2P |
|
MACHINE SIZE |
|
Machine height |
2410mm (97-7/8") |
|
Floor
space (Longitudinal x cross) |
3200mm x 2000mm
(126"x78-3/4") |
|
Net
weight (Approx.) |
4000kg (8800lbs) |
